FAF67DRN132MC4詳細信息
FAF67DRN132MC4
關鍵詞：拖拉機啟動廠家減速機電機_FAF67DRN132MC4_FAF67DRN132ML4
FAF67DRN132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF67DRN132MC4 | 22.05 | 5.5KW | 66.0rpm | 795N.m | 115Kg | 10500N | 1.05 |
| FAF67DRN132MC4 | 20.90 | 5.5KW | 70.0rpm | 750N.m | 115Kg | 10900N | 1.10 |
| FAF67DRN132MC4 | 18.29 | 5.5KW | 80.0rpm | 660N.m | 115Kg | 11500N | 1.25 |
| FAF67DRN132MC4 | 16.48 | 5.5KW | 88.0rpm | 590N.m | 115Kg | 11900N | 1.40 |
| FAF67DRN132MC4 | 14.46 | 5.5KW | 101rpm | 520N.m | 115Kg | 12300N | 1.55 |
| FAF67DRN132MC4 | 12.76 | 5.5KW | 114rpm | 460N.m | 115Kg | 12600N | 1.80 |
| FAF67DRN132MC4 | 11.31 | 5.5KW | 129rpm | 405N.m | 115Kg | 12800N | 2.00 |
| FAF67DRN132MC4 | 9.66 | 5.5KW | 151rpm | 345N.m | 115Kg | 12900N | 2.40 |
| FAF67DRN132MC4 | 9.08 | 5.5KW | 160rpm | 325N.m | 115Kg | 12400N | 1.60 |
| FAF67DRN132MC4 | 8.60 | 5.5KW | 169rpm | 310N.m | 115Kg | 12200N | 1.85 |
| FAF67DRN132MC4 | 7.53 | 5.5KW | 193rpm | 270N.m | 115Kg | 11900N | 2.20 |
| FAF67DRN132MC4 | 6.78 | 5.5KW | 214rpm | 240N.m | 115Kg | 11700N | 2.50 |
| FAF67DRN132MC4 | 5.95 | 5.5KW | 245rpm | 210N.m | 115Kg | 11300N | 2.80 |
| FAF67DRN132MC4 | 5.25 | 5.5KW | 277rpm | 190N.m | 115Kg | 11000N | 3.10 |
| FAF67DRN132MC4 | 4.66 | 5.5KW | 313rpm | 168N.m | 115Kg | 10700N | 3.30 |
| FAF67DRN132MC4 | 3.97 | 5.5KW | 366rpm | 144N.m | 115Kg | 10300N | 3.50 |
FAF67DRN132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF67DRN132ML4 | 22.05 | 5.5KW | 66.0rpm | 795N.m | 115Kg | 10500N | 1.05 |
| FAF67DRN132ML4 | 20.90 | 5.5KW | 70.0rpm | 750N.m | 115Kg | 10900N | 1.10 |
| FAF67DRN132ML4 | 18.29 | 5.5KW | 80.0rpm | 660N.m | 115Kg | 11500N | 1.25 |
| FAF67DRN132ML4 | 16.48 | 5.5KW | 88.0rpm | 590N.m | 115Kg | 11900N | 1.40 |
| FAF67DRN132ML4 | 14.46 | 5.5KW | 101rpm | 520N.m | 115Kg | 12300N | 1.55 |
| FAF67DRN132ML4 | 12.76 | 5.5KW | 114rpm | 460N.m | 115Kg | 12600N | 1.80 |
| FAF67DRN132ML4 | 11.31 | 5.5KW | 129rpm | 405N.m | 115Kg | 12800N | 2.00 |
| FAF67DRN132ML4 | 9.66 | 5.5KW | 151rpm | 345N.m | 115Kg | 12900N | 2.40 |
| FAF67DRN132ML4 | 9.08 | 5.5KW | 160rpm | 325N.m | 115Kg | 12400N | 1.60 |
| FAF67DRN132ML4 | 8.60 | 5.5KW | 169rpm | 310N.m | 115Kg | 12200N | 1.85 |
| FAF67DRN132ML4 | 7.53 | 5.5KW | 193rpm | 270N.m | 115Kg | 11900N | 2.20 |
| FAF67DRN132ML4 | 6.78 | 5.5KW | 214rpm | 240N.m | 115Kg | 11700N | 2.50 |
| FAF67DRN132ML4 | 5.95 | 5.5KW | 245rpm | 210N.m | 115Kg | 11300N | 2.80 |
| FAF67DRN132ML4 | 5.25 | 5.5KW | 277rpm | 190N.m | 115Kg | 11000N | 3.10 |
| FAF67DRN132ML4 | 4.66 | 5.5KW | 313rpm | 168N.m | 115Kg | 10700N | 3.30 |
| FAF67DRN132ML4 | 3.97 | 5.5KW | 366rpm | 144N.m | 115Kg | 10300N | 3.50 |
FAF67DRN132MC4減速齒輪箱類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

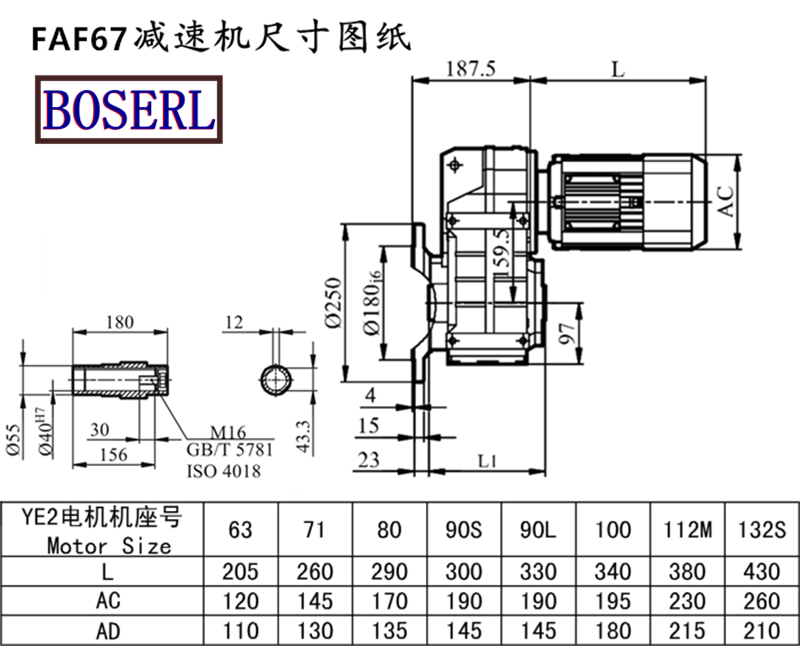

FAF67DRN132MC4減速齒輪箱安裝尺寸圖紙
FAF67DRN132MC4減速齒輪箱生產廠家，看廠請?zhí)崆叭祛A(yù)約三相220V電機減速機
關鍵詞:FAF系列減速機與電機_220V電機減速機一套_三相220V電機減速器_380V電機減速機_三相380V電機減速器_三相減速電機_三相減速機生產廠家
FAF系列減速機型號：FAF27減速機,FAF37減速機,FAF47減速機,FAF67減速機,FAF77減速機,FAF87減速機,FAF97減速機,FAF107減速機,FAF127減速機,FAF157減速機
FAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
